Bizzotto Ocean Anthracite Aluminum Lateral Sunshade H238 L123

The Bizzotto Ocean anthracite side screen shields light and views on the sides of the Ocean pergola with fixed powder-coated aluminum blades 65 × 15 mm, on a panel H 238 × W 123.5 cm × D 6 cm. The modular structure allows covering an entire side up to 4 m by joining multiple panels, or partially closing a corner, with fastening via self-drilling screws and stainless steel hardware. Suitable for residential and contract use.

Technical Specifications

• Panel dimensions: H 238 × W 123.5 × D 6 cm
• Material: Powder-coated aluminum (polyester)
• Support posts: 60 × 25 mm

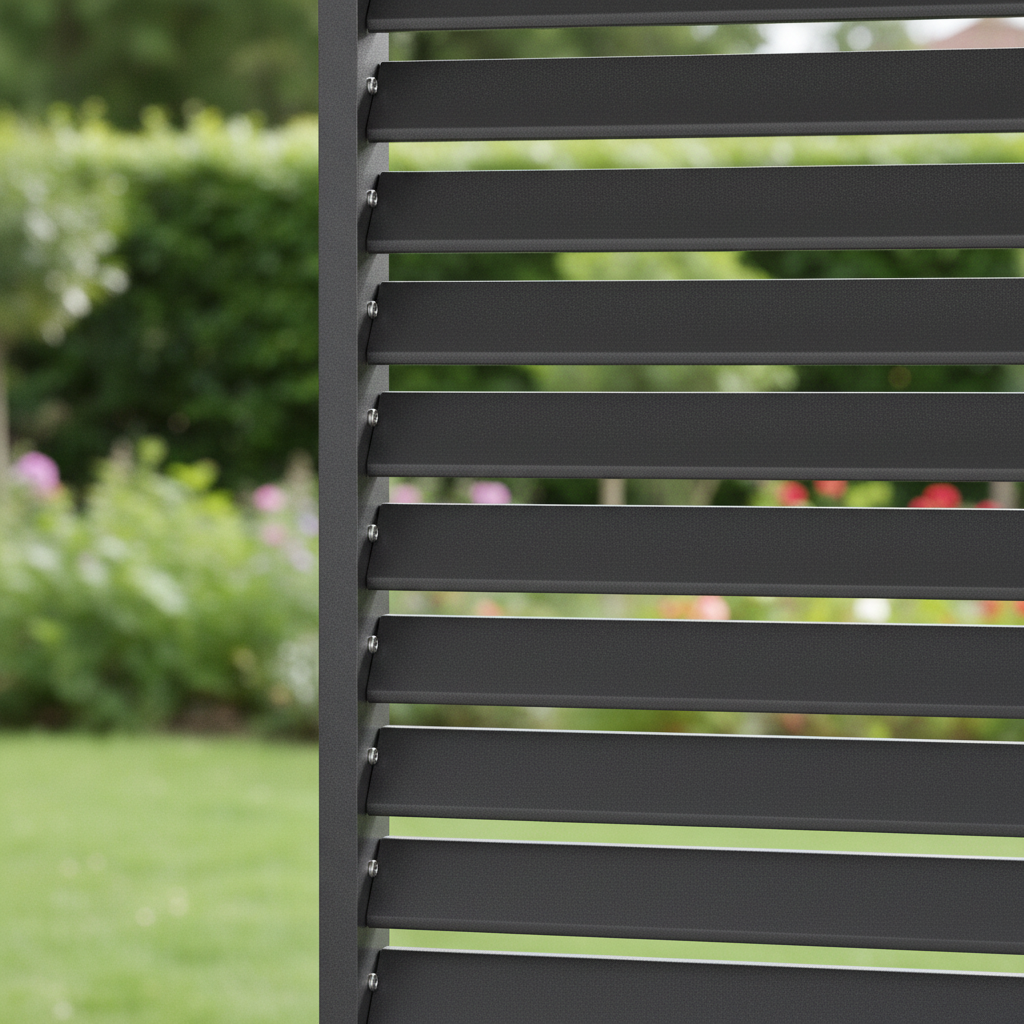

• Sunshade blades: Fixed, 65 × 15 mm
• Color: Anthracite
• Fastening: Self-drilling screws
• Hardware: Stainless steel

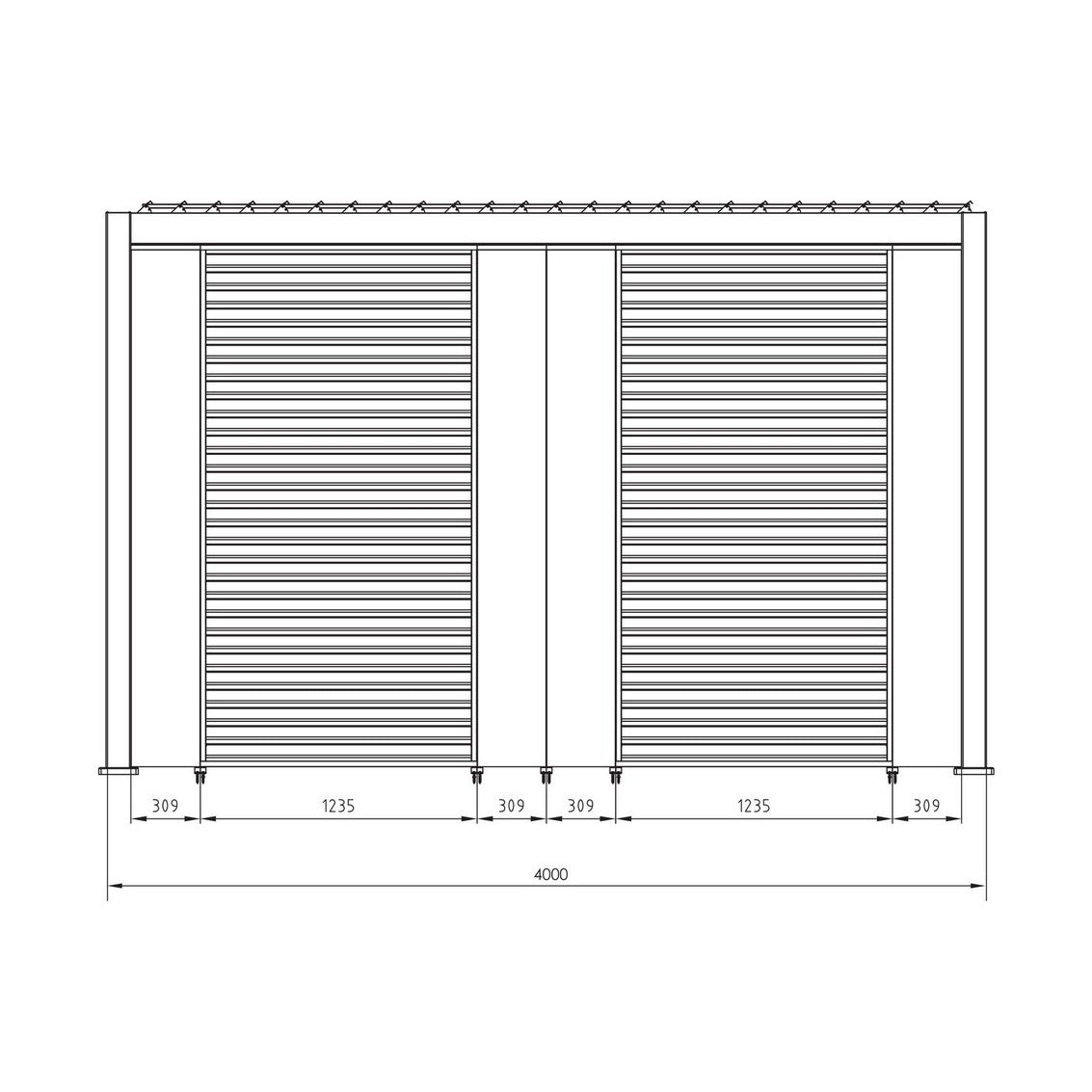

• Modularity: Side coverage up to 4 m by joining multiple panels; partial corner closure
• Compatibility: Bizzotto Ocean pergola
• Installation: Free-standing
• Weight: 24 kg
• Supplier Code: 0795781 – EAN 8051836473805

Occasions for Use

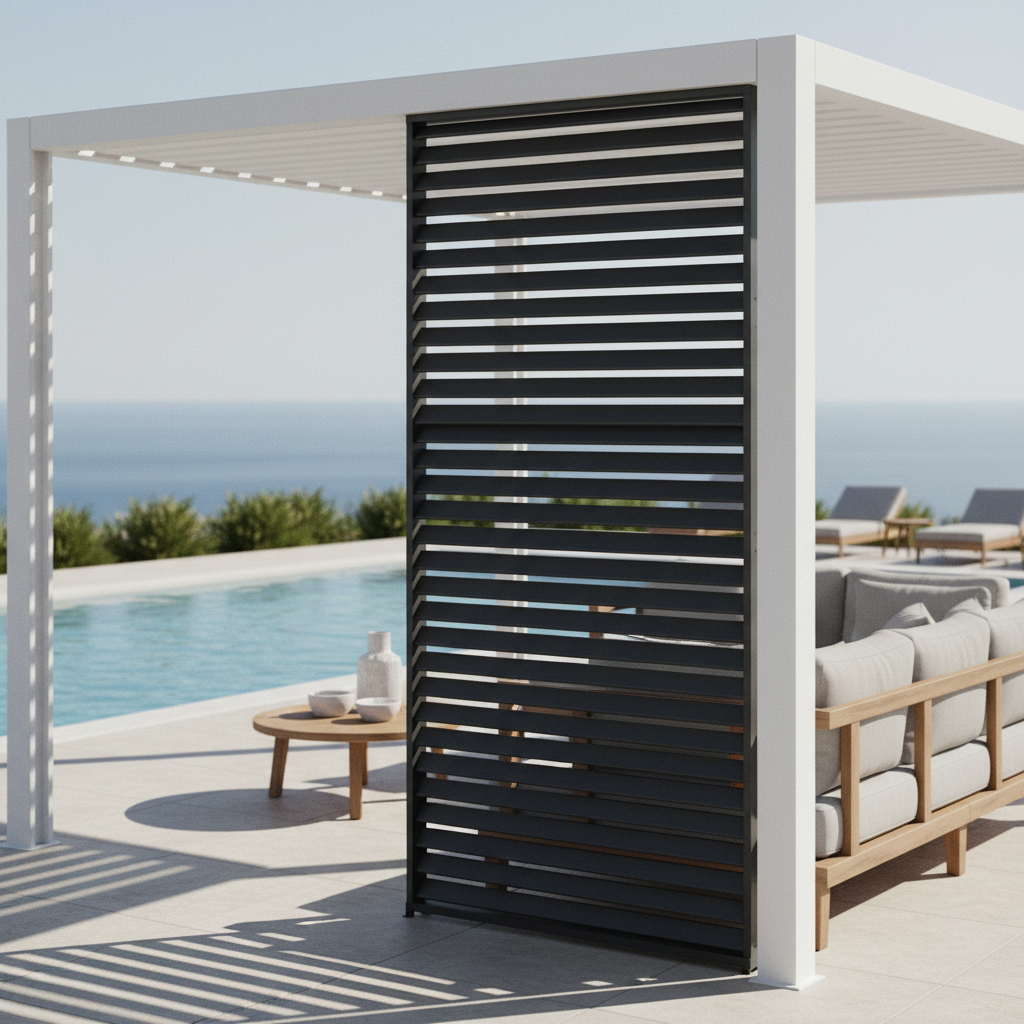

The Ocean anthracite side screen is ideal for terraces, verandas, and poolside areas, where it complements the Ocean pergola by creating an outdoor area shielded from sun and views. Perfect for outdoor summer dinners, garden aperitifs, and private receptions where privacy is a priority. In the contract sector, it is chosen by restaurants with outdoor seating, hotels, and resorts to enclose pergolas laterally and create protected and private outdoor environments.

Care and Maintenance

Clean the aluminum structure and blades with warm water and mild soap, dry immediately to avoid streaks. Avoid abrasive sponges and solvents that can alter the anthracite finish. In coastal areas with intense salt spray, rinse with fresh water regularly. Periodically check the stainless steel hardware and the fastening of the self-drilling screws. No seasonal storage required.

Frequently Asked Questions

What are the exact dimensions of the Ocean side screen?
Height 238 cm, width 123.5 cm, depth 6 cm: one panel covers approximately 1.2 m of a side. To cover a 4 m side, approximately 3–4 panels are needed side by side.

What material is it made of and how long does it last?
Anthracite powder-coated aluminum, fixed blades 65 × 15 mm, stainless steel hardware: materials designed to withstand UV, rain, and permanent outdoor use without extraordinary maintenance.

How is the side screen installed?
Free-standing installation with included self-drilling screws and stainless steel hardware. Fastening is done on the uprights of the Ocean pergola: an operation that can be performed in 30–60 minutes per panel with a drill and screwdriver.

Is it only compatible with Bizzotto's Ocean pergola?
It is specifically designed to integrate with the Bizzotto Ocean pergola. Check compatibility with other pergola models before purchasing by contacting the store.

Are the sunshade blades adjustable?
No: the blades are fixed at a predefined inclination, optimized to shield direct light while maintaining natural ventilation. For adjustable blades, consult other accessories in the Ocean line.

Can it stay outdoors all year round?
Yes: the powder-coated aluminum is resistant to rain, UV, and frost. No seasonal disassembly is required. In marine environments, rinse with fresh water periodically to preserve the anthracite finish.

How many panels are needed to close a 4 m side?
3 panels of 123.5 cm are needed to cover approximately 370 cm, or 4 panels for complete coverage up to 494 cm. The modular structure also allows for partial closures on corners or shorter sides.
