Bizzotto Ocean Anthracite Aluminium Side Sunscreen H238 W93

The Bizzotto Ocean anthracite side sunshade, L 93 cm, screens light and views on the sides of the Ocean pergola with fixed powder-coated aluminum blades 65 × 15 mm, on an H 238 × L 93 × D 6 cm panel. The narrower format compared to the L 123.5 cm version allows for partial closures on corners and short sides, with modular coverage up to 3 m by joining multiple panels, fixed with self-drilling screws and stainless steel hardware. Suitable for residential and contract use.

Technical Specifications

• Panel Dimensions: H 238 × L 93 × D 6 cm
• Material: Powder-coated aluminum (polyester)
• Support Posts: 60 × 25 mm

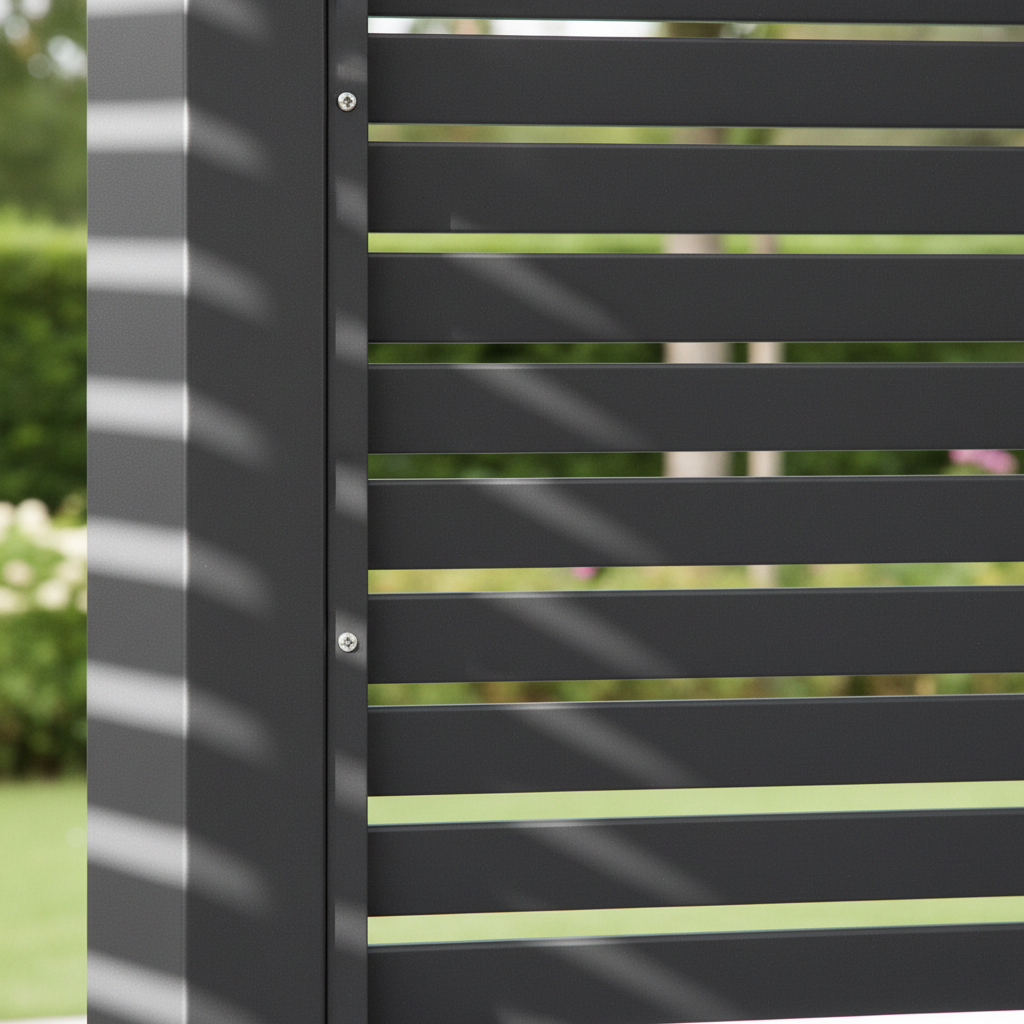

• Sunshade Blades: Fixed, 65 × 15 mm
• Color: Anthracite
• Fixing: Self-drilling screws
• Hardware: Stainless steel

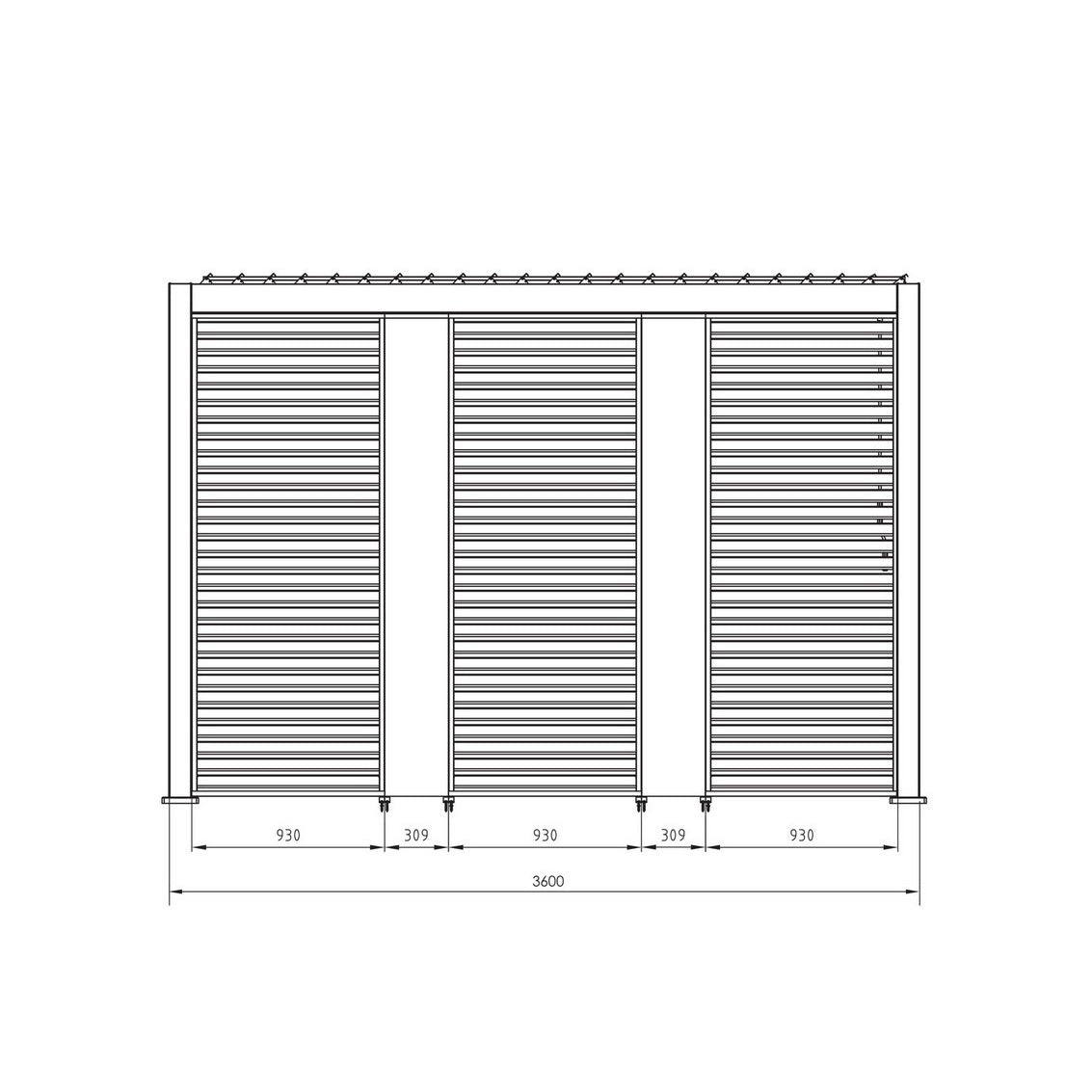

• Modularity: Side coverage up to 3 m by joining multiple panels; partial corner closure
• Compatibility: Bizzotto Ocean Pergola
• Installation: Freestanding
• Weight: 19 kg
• Supplier Code: 0795775 – EAN 8051836466913

Use Cases

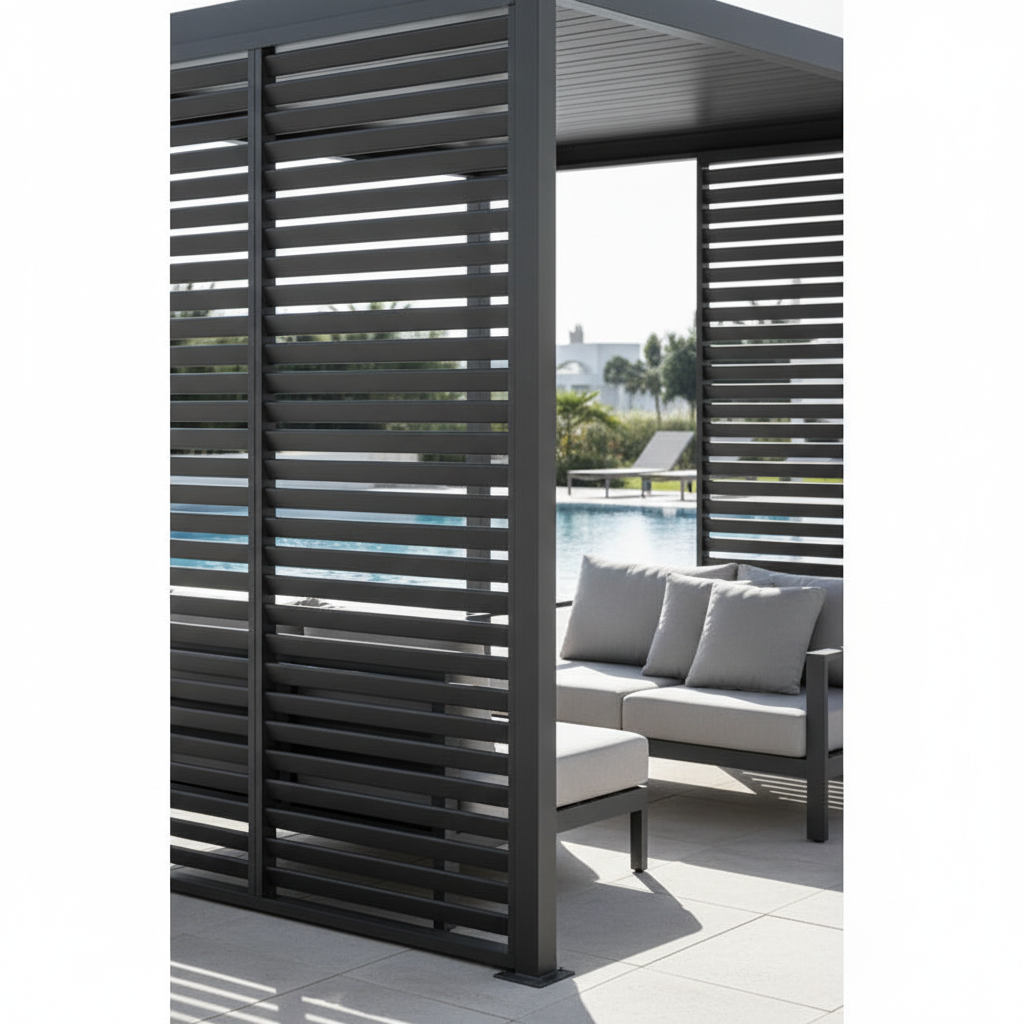

The Ocean anthracite L93 side sunshade is ideal for terraces, verandas, and poolside areas, where its narrow format is suitable for closing corners, short sides, or residual spaces of the Ocean pergola. Perfect for summer aperitifs, outdoor dinners, and private receptions where you want to screen a specific corner without covering the entire side. In the contract sector, it is chosen by restaurants, hotels, and resorts to complete pergola configurations with custom partial closures.

Care and Maintenance

Clean the aluminum structure and blades with warm water and mild soap, dry immediately to avoid streaks. Avoid abrasive sponges and solvents that can alter the anthracite finish. In coastal areas with intense salt spray, rinse with fresh water regularly. Periodically check the stainless steel hardware and the fixing of the self-drilling screws. No seasonal storage necessary.

Frequently Asked Questions

What are the exact dimensions of the Ocean L93 side sunshade?
Height 238 cm, width 93 cm, depth 6 cm: a narrower format than the L 123.5 cm version, ideal for corners and short sides. To cover a 3 m side, approximately 3–4 panels side by side are needed.

What material is it made of and how long does it last?
Anthracite powder-coated aluminum, fixed blades 65 × 15 mm, stainless steel hardware: materials designed to withstand UV, rain, and permanent outdoor use without extraordinary maintenance.

How is the side sunshade installed?
Freestanding installation with self-drilling screws and stainless steel hardware. Fixing is done on the uprights of the Ocean pergola: an operation that can be performed in 30–60 minutes per panel with a drill and screwdriver.

What is the difference between the L93 version and the L123.5 version?
The L 93 cm version is narrower and is used to close corners, short sides, or residual spaces. The L 123.5 cm version covers more surface per side and is preferred for complete closures of long sides up to 4 m.

Are the sunshade blades adjustable?
No: the blades are fixed at a predefined inclination, optimized to screen direct light while maintaining natural ventilation. For adjustable blades, consult other accessories in the Ocean line.

Can it stay outdoors all year round?
Yes: the powder-coated aluminum is resistant to rain, UV, and frost. No seasonal dismantling is necessary. In marine environments, rinse with fresh water periodically to preserve the anthracite finish.

Is it only compatible with the Bizzotto Ocean pergola?
It is specifically designed to integrate with the Bizzotto Ocean pergola. Check compatibility with other pergola models before purchase by contacting the store.
